Shield OMSx [Glass]

€516,00 EUR

Tax included Shipping calculated at checkout.

Authorized Shield Sights Dealer Genuine product · Full manufacturer warranty

Size

4 MOA 8 MOA 65/2 MOA

Full description

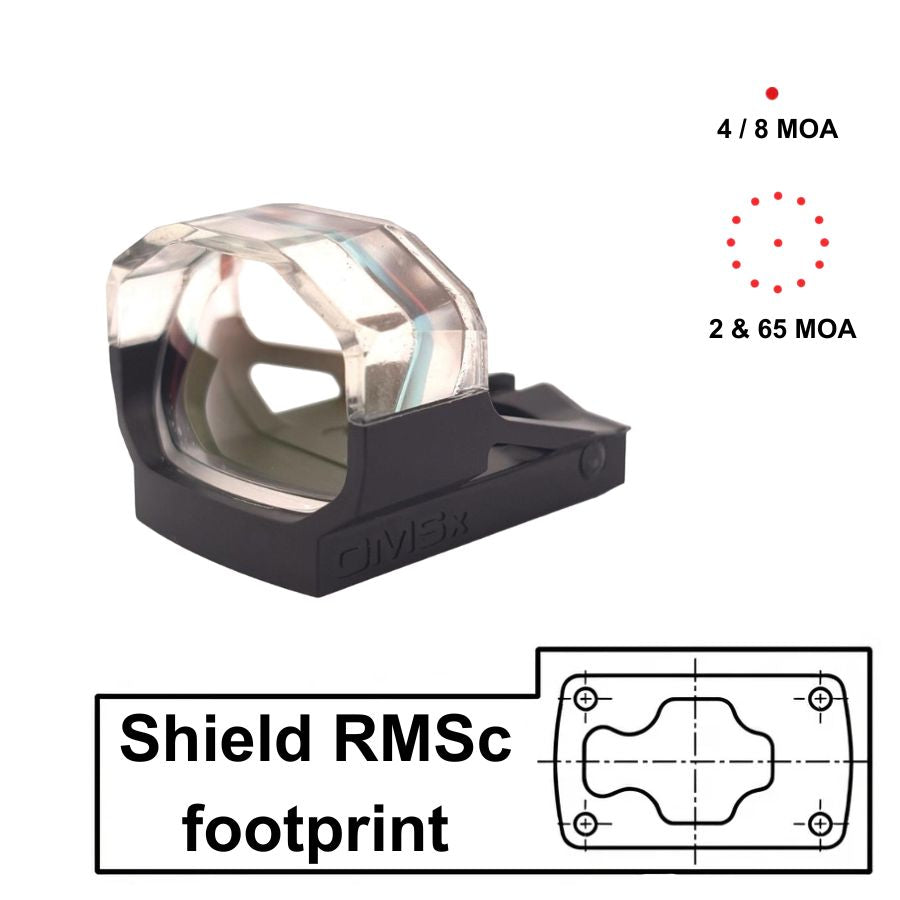

This red dot uses the Shield RMSc footprint standard.

Key specifications

Footprint	Shield RMSc
Reticle	4 MOA dot / 8 MOA dot / 2 MOA dot & 65 MOA circle [red]
Window size (H x W)	21.0 x 28.0 mm [0.83 x 1.10"]
Total dimensions (L x W x H)	40.8 x 34.0 x 27.3 mm [1.61 x 1.34 x 1.07"]
Battery type	CR2032
Battery access	The optic must be removed from the gun to change the battery.

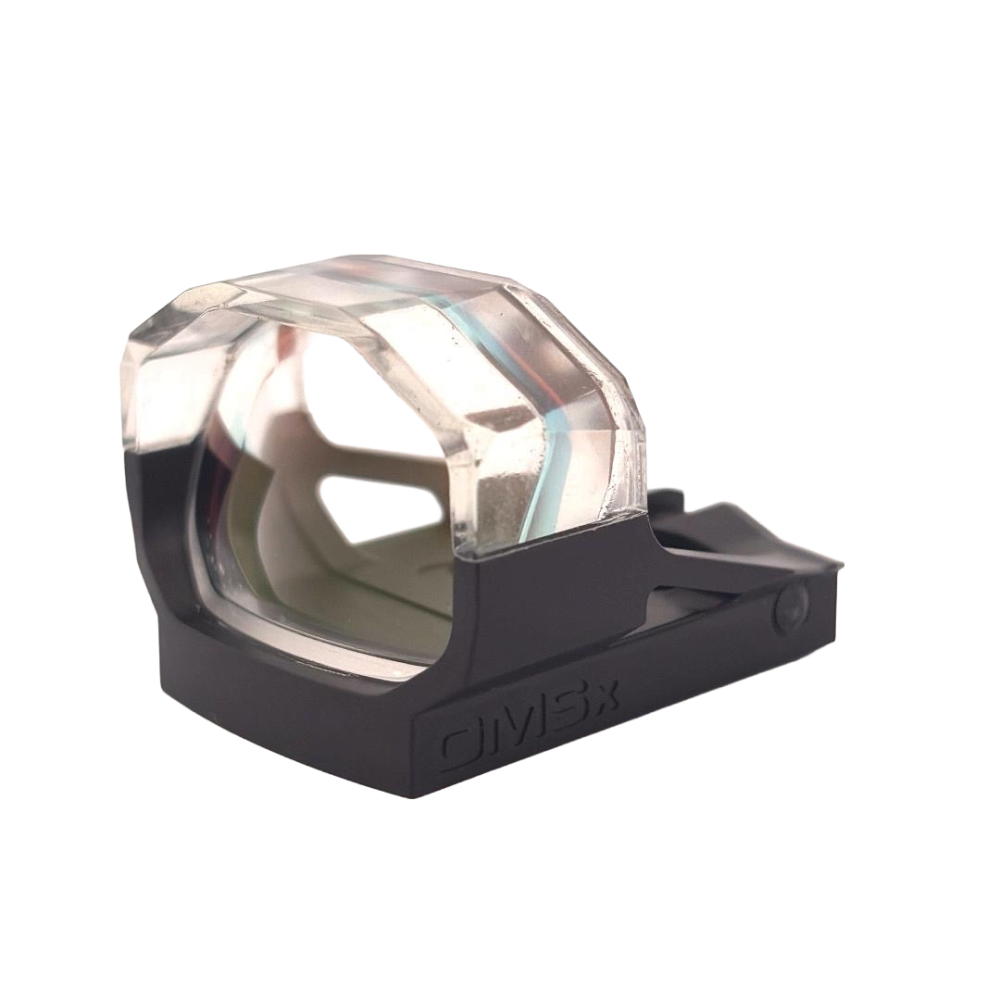

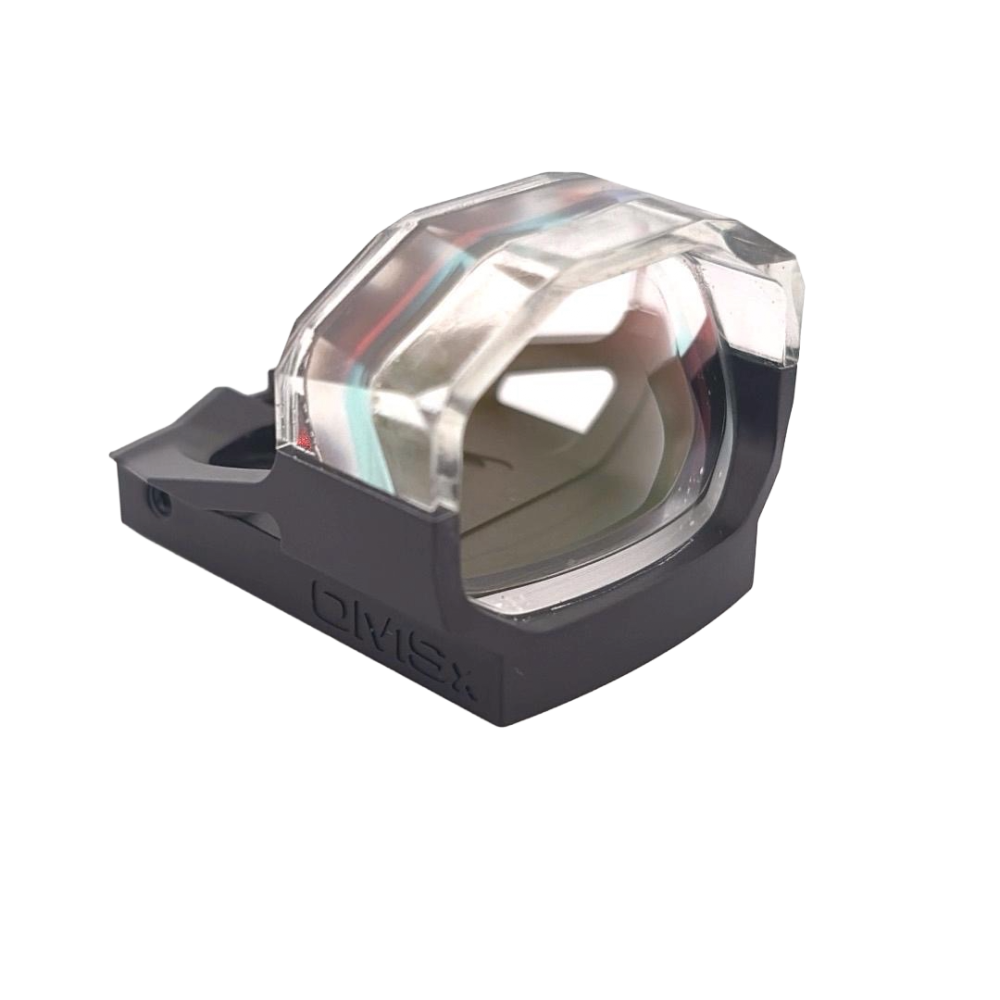

Introducing the SHIELD OMSx - a next generation micro red dot sight engineered for high level competitive shooting.

The OMSx differentiates itself from our Mini-Sight range through an 80% increase in lens area, significantly expanding the field of view while maintaining a true to colour, distortion free optical image. The enlarged viewing window enhances dot tracking, target transitions, and situational awareness during high speed stages.

Featuring SHIELD's translucent roof architecture, first implemented on the OMSsc, the OMSx delivers an unrestricted sight picture with almost zero visual obstruction.

The design features include:

Translucent roof architecture for enhanced brightness and field of view
Wide viewing window inspired by the RMSx competition optic
Transparent acrylic hood for an unobstructed view
Aerospace grade anodized T6 6082 aluminium housing
Octagon-shaped, crystal-clear glass lens with no filters to disturb the image of the world through the sight
SHIELD's patented mechanism, enabling co-witnessing with standard iron sights
No click adjustment, making it infinitely more accurate when zeroing
Auto brightness adjustment, so it can always be on and ready
CR2032 3V lithium, 20,000 hours in average daylight
IP67 rated for dust and water resistance

Further details

Optical Characteristics

Light source	Red light emitting diode (LED). No laser; completely eye-safe. No radioactive materials.
Red dot size options	4 MOA, 8 MOA, 65/2 Ring and Dot.
Lens	Octagon-shaped, crystal-clear glass lens with no filters to disturb the image of the world through the sight.
Lens coating	Hard coating with anti-reflective, colour-free coating that minimizes visible signature.

Electronics

Battery	One 3V lithium metal battery, CR2032.
Battery life	20,000 hours in average daylight with a CR2032.
Battery fitting	Underneath.
Brightness adjustment	Automatic.
Brightness range	Lowest - compatible with Night Vision. Highest - visible against the sky in bright daylight.

Exterior

Housing material	Aerospace grade anodized aluminium (6082 T6), with acrylic roof.
Colour	Matte black with a transparent roof.
Dimensions	Sight only (L x W x H) 40.8 mm x 34 mm x 27.3 mm / 1.61" x 1.34" x 1.07".
Weight	27.6 grams / 1 ounce (excluding battery).
Mount	The SHIELD footprint - 100+ mounting solutions.
Water immersion	3 feet for 30 minutes (IP67).
